Product Details:
Payment & Shipping Terms:
|
Name: | Pvc Laminated Ceiling Board | Surface: | Lamination |
---|---|---|---|
Size: | 200 × 7.5MM | Weight: | 2.5-3kg/sqm |
Packing Quantity: | 10pcs/bag | Application: | Cladding |
High Light: | laminate ceiling panels,pvc laminated ceiling board |
Groove Pvc Laminated Ceiling Board / Cladding Laminate Ceiling Panels
Pvc Laminated Ceiling Board Features
(1) Resistant to fire, heat, water, scratches; anti-static, soundproof
(2) Durable, not easy to deform or fade
(3) Environmental protection, no toxic or radiate substance emerged
(4) Can be bent, create streamlined aesthetic.
(5) Easy and convenient to design and process
(6) Easy to clean, the stains can be cleaned by soft cloth.
(7) Various colors, surface finishing can be chosen, satisfy your own favorites
Pvc Laminated Ceiling Board Specification:
Product |
PVC Panel |
Width |
25cm, 250mm, 10 inch |
Thickness |
7.5mm |
Length |
20GP with 5.8m, 40HQ with 5.95m |
Weight |
2.5-3kg/sqm |
Surface |
Flat, lamination |
Package |
10pcs/bag |
Pvc Laminated Ceiling Board Packing:
1) Outer packing: PE film
2) Packing number: 10pcs/bag
3) Packing mark: We can print your company logo or OEM
Pvc Laminated Ceiling Board Fire Test Report:
Report No.
|
V03-1400167 | Specification | 250mm | ||||
Product
|
PVC Wall & ceiling Panel | Standard | BS EN 13501-1:2014 | ||||
Test Items
|
Measure Unit | Technical Requirement | Test Results | Individual Judgment | |||
Fire growth rate
|
W/s | C | ≤250 | 102 | Compliant | ||
Lateral flame spread
|
m | Yes | Compliant | ||||
Total heat release
|
MJ | ≤15 | 10.5 | Compliant | |||
Flame spread
|
Surface | mm | ≤150 | 30 | Compliant | ||
Edge | 32 | Compliant | |||||
Smoke growth rate
|
m2/s2 | S2 | ≤180 | 172 | S3 Compliant |
||
Total smoke production
|
m2 | ≤200 | 166 | ||||
Flaming droplets/particles
|
------ | d0 | No flaming droplets/particles occur within 600s |
Yes | Compliant | ||
Ignition of the filter paper
|
------ | No ignition of the filter paper | Yes | Compliant | |||
Conclusion
|
The combustion performance of sample is Satisfied BS EN 13501-1:2014 about grade C-s3, d0. |

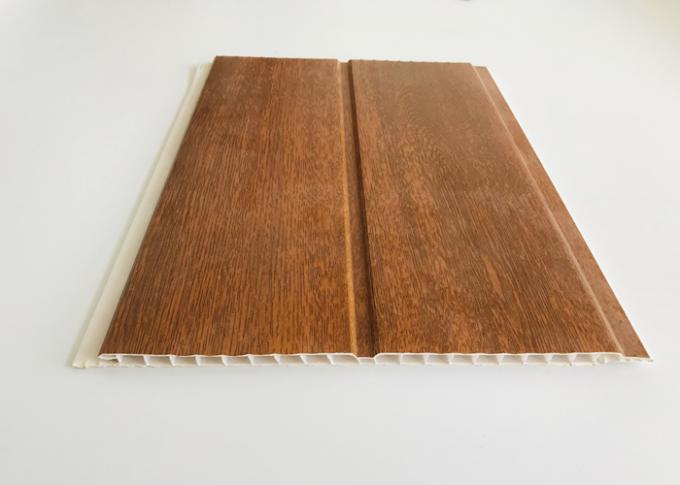

PVC Panel Showing:
